Visibility Property

The Visibility Property allows you to Show/Hide a block and set a default state.

  • Open the Components Properties modal by clicking the "+" sign.

  • Select Visibility in the Properties dropdown.

  • Select the Visibility Property you wish to configure.


The Visibility Property needs to be connected for it to be applied to the canvas.

You need to select "Modify" in the Toolbar or Block Inspector for the blocks that make up a particular component to be visible.

  • Select the Component to which you want to connect the Visibility Property.

  • Select "Modify" in the toolbar or the Block Inspector.

  • The blocks contained in the component are now visible in the navigator.

  • Find and select the Visibility property you wish to connect in the navigator.

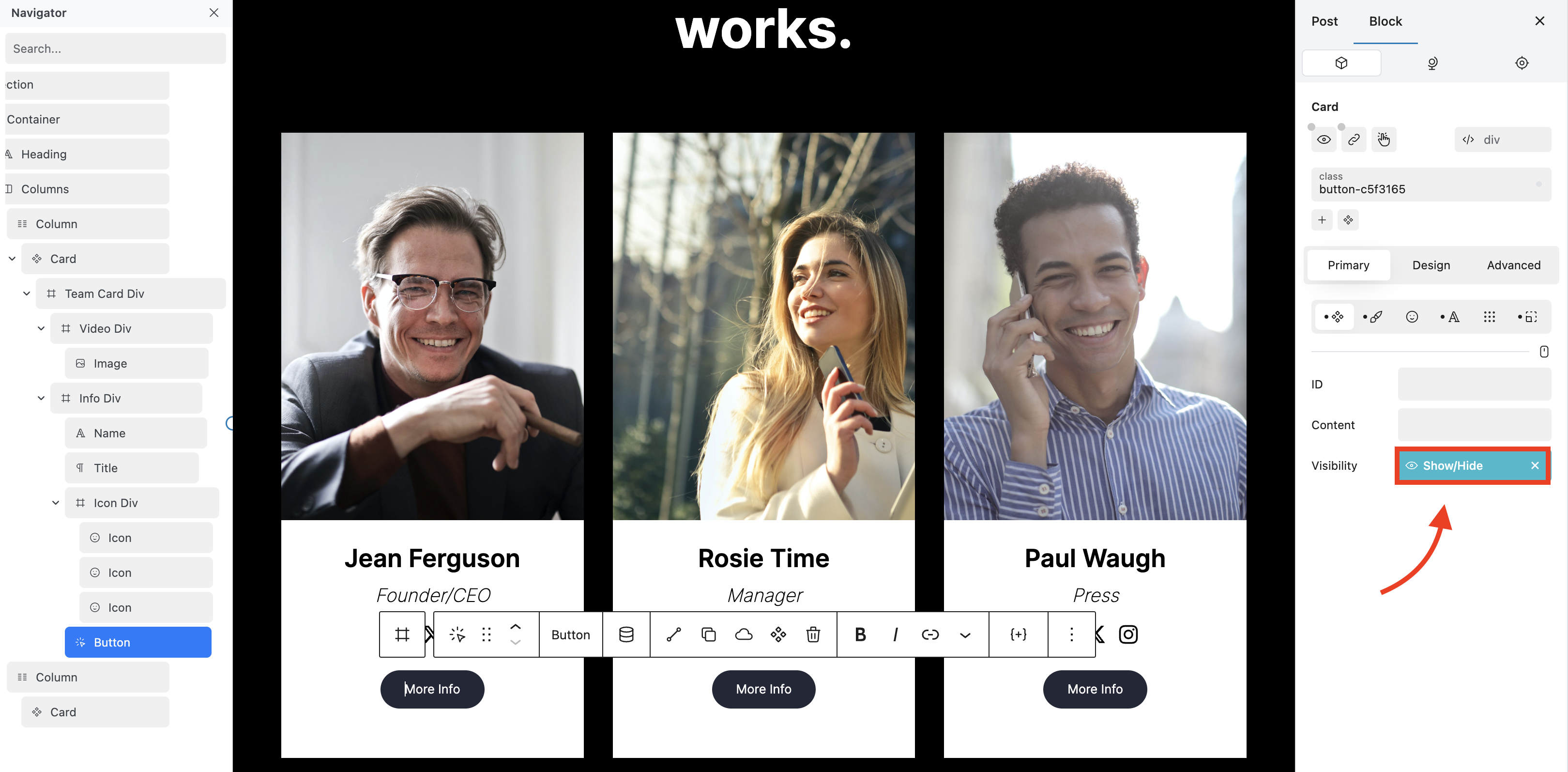

  • In the Components Settings tab of the Primary tab, click the Visibility field.

  • This opens the Component Properties modal.

  • Select the Visibility property you wish to connect.

  • Click "Connect".

  • The Visibility Property will now be visible in the Visibility field in green which indicates that it is connected.

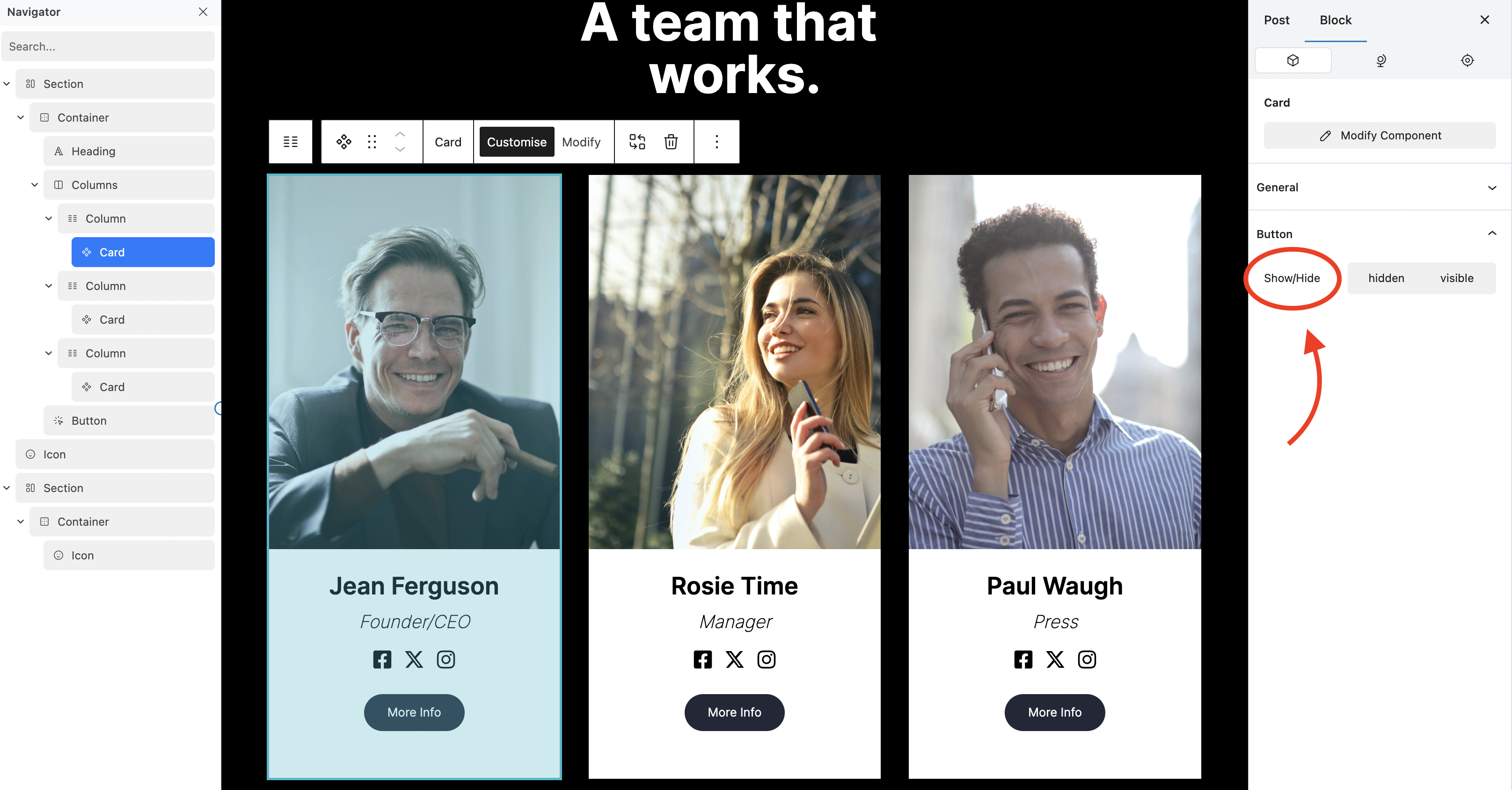

  • In the navigator, select required Component.

  • In the Block Inspector, choose required state (Hidden/Visible).

When Visible is selected, the item is visible.

When Hidden is selected, the item is hidden.

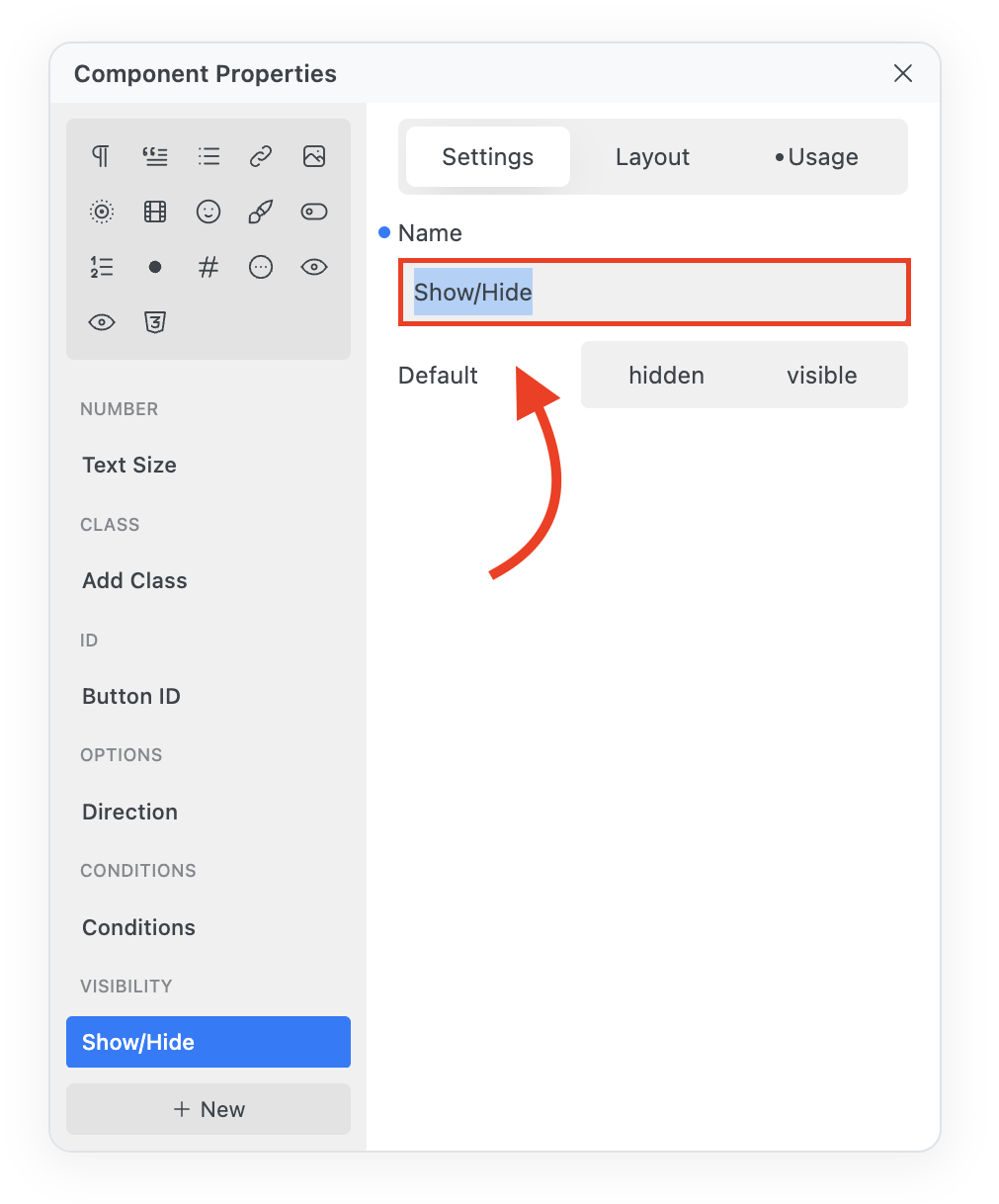

Allows you to label the selected Visibility property.

  • Open the Component Properties modal.

  • Select required visibility property.

  • Input suitable label name to Name field.

The required Name label will now be visible in the Block Inspector.


Allows you to set a default Visibility state to your component.

  • Open the Components Properties by clicking the "+" icon.

  • Select required Default state.

The Default Visibility state will now be reflected in the canvas.
